Backup Job Wizard for Hyper-V: Destination

On the Destination page of the wizard, you can select one or multiple different Backup Repositories to back up your Hyper-V VMs.

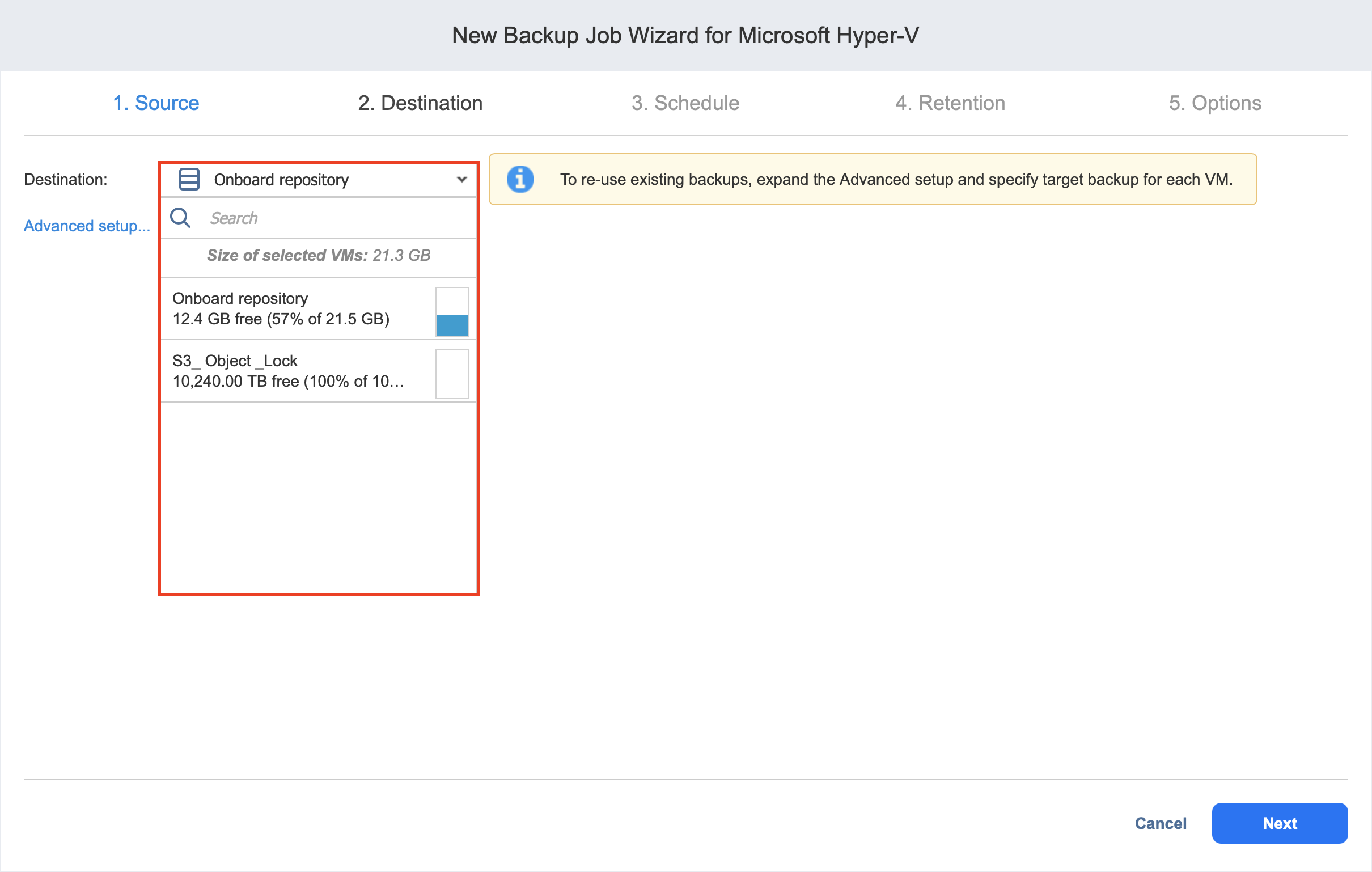

Setting Single Backup Repository for All VMs

To back up all VMs to a single Backup Repository, choose a Backup Repository from the Destination drop-down list.

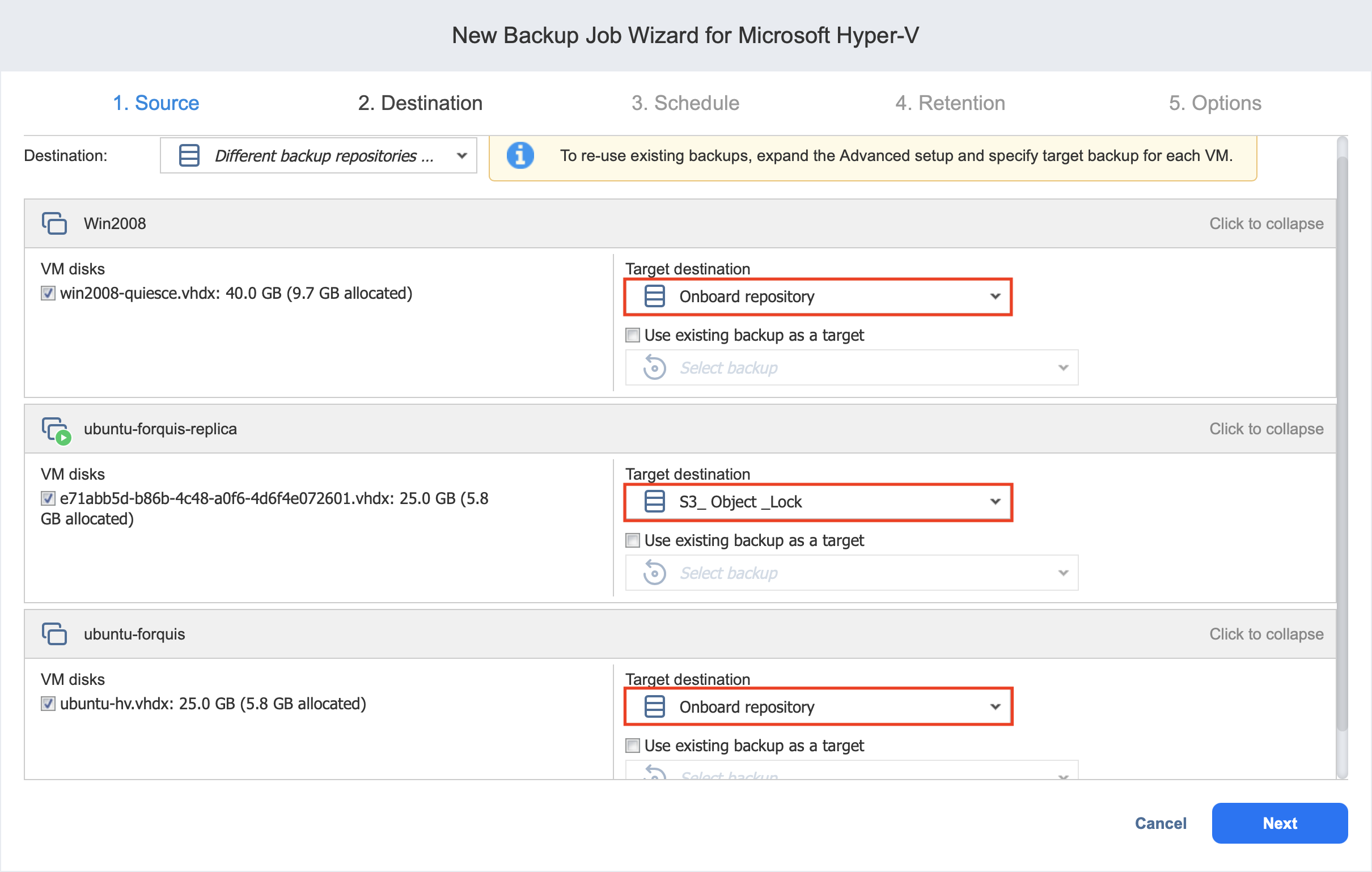

Setting Different Backup Repositories for VMs

To back up the selected VMs to different Backup Repositories, follow the steps below:

  1. Click Advanced setup.

  2. In the VM boxes, choose a Backup Repository for each VM individually.

Mapping Source VMs to Existing Backups

If you have previously backed up a VM and then lost the backup job due to accidental job deletion or because you needed to recreate jobs in a new copy of the product, you can map the source VMs to existing backups to avoid running full VM backups again.

To map source VMs to existing backups, follow the steps below:

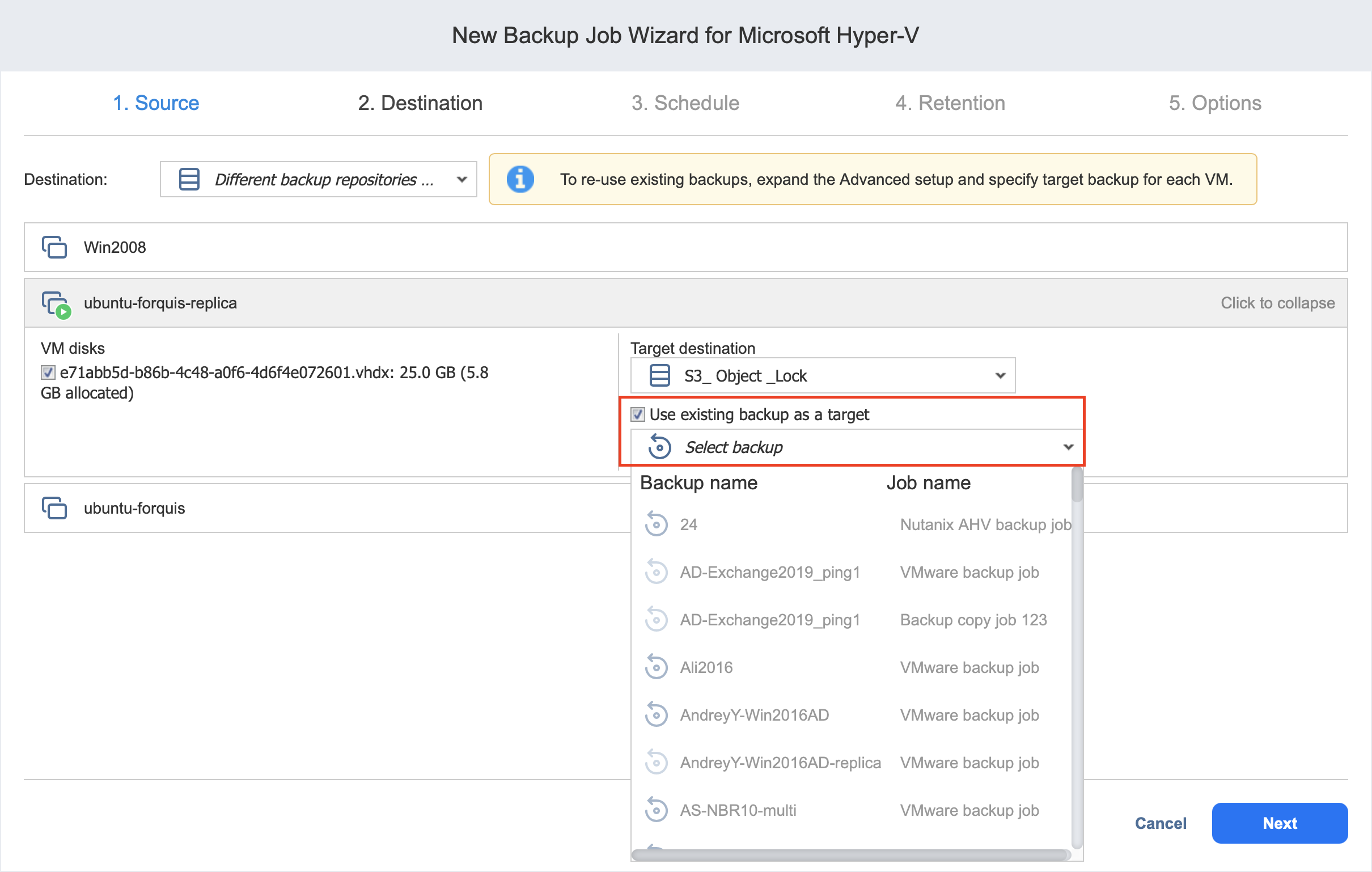

  1. Click Advanced setup.

  2. From the Destination drop-down list, choose a Backup Repository that contains an existing VM backup.

  3. Select the Use existing backup as a target option and choose an existing backup from the drop-down list.


When you run the job, the product will analyze the target VM you have selected, determine how it is different from the source VM, and transfer only the differential data. VM backup mapping can be a time-consuming process that can be equal to the time required to create a full VM backup. After the job is completed, a new recovery point will be created and existing recovery points will not be changed or overwritten.

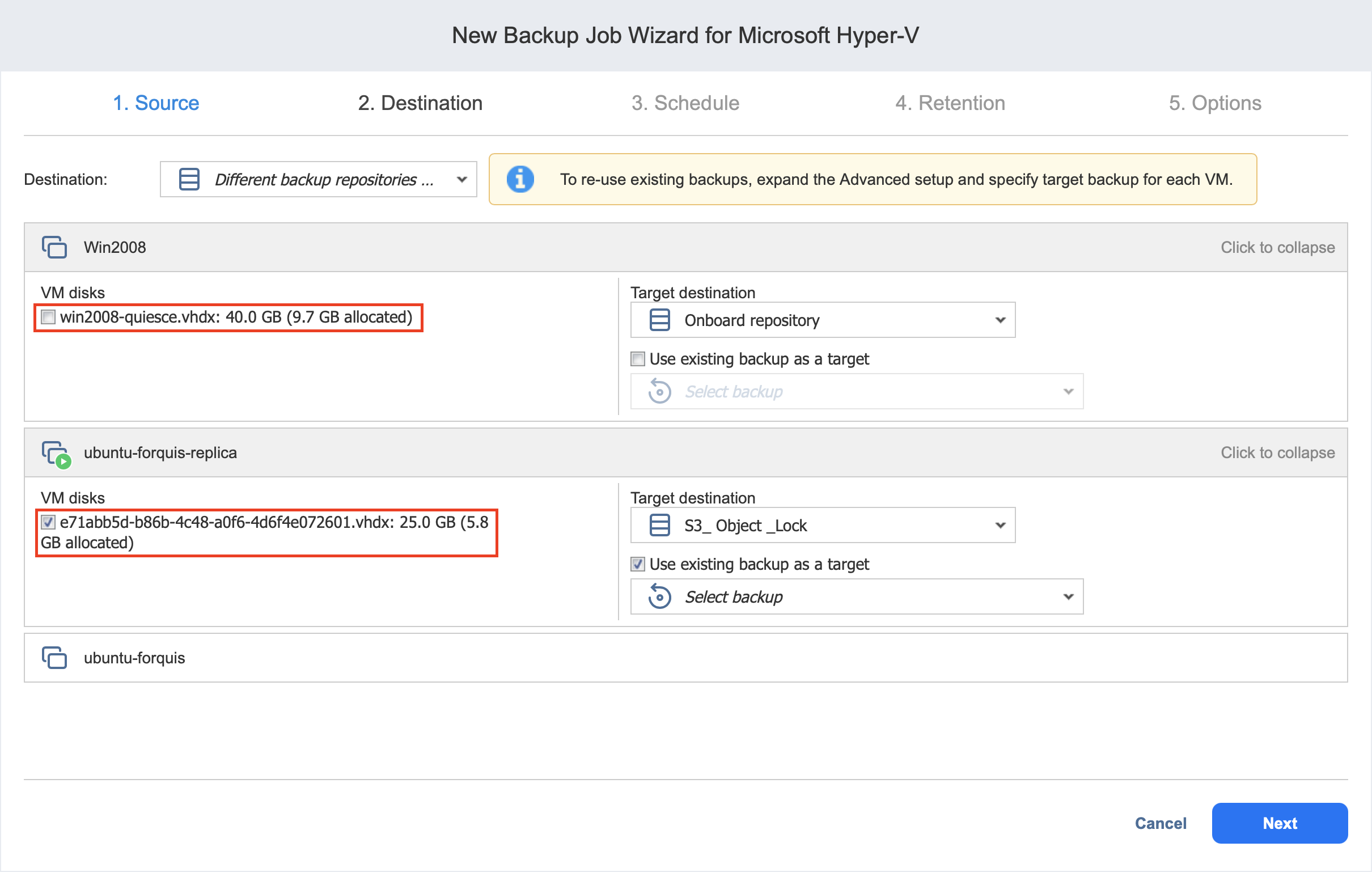

Excluding VM Disks from the Backup Job

If you do not want to back up certain VM disks, you can exclude those disks from the backup job by following the steps below:

  1. Click Advanced setup.

  2. Cancel the selection of the VM disks that you would not like to back up.
