Replication at Master Site

Deployment Scenario

In this scenario, tenant VMs are running at the Master site and the replication of tenant VMs is also performed at the Master site.

Example
A service provider runs customers' VMs in the service provider’s datacenter. To ensure high availability of tenant VMs, the service provider seeks to replicate customer VMs to a different server.

Deployment Diagram

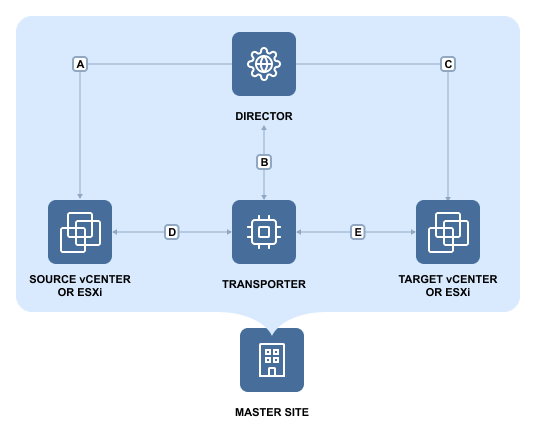

The deployment diagram for the above scenario is as follows:

Deployment Steps

To deploy the above scenario, perform the following steps:

  1. Install the Director in multi-tenant mode at the master site.
  2. Install at least one Transporter at the master site.
  3. For each tenant, prepare a separate ESXi host that will serve as a replication target.

Connections

The implementation of the above scenario requires that the following connections be available:

Connection Description
A Connection from the machine on which the Director is installed to vCenter servers and ESXi hosts that run source VMs. The port used for communication with vCenter servers and ESXi hosts (443 by default) is open in firewalls.
B Connection from the machine on which the Director is installed to the machine on which the Transporter is installed. The port used for communication with the Transporters (9446 by default) is open in firewalls.
C Connection from the machine on which the Director is installed to vCenter servers and ESXi hosts where VM replicas will be created. The port used for communication with vCenter servers and ESXi hosts (443 by default) is open in firewalls.
D Connection from the machine on which the Transporter is installed to vCenter servers and ESXi hosts running source VMs.
E Connection from the machine on which the Transporter is installed to vCenter servers and ESXi hosts where VM replicas will be created.
