Failback Job Wizard for Microsoft Hyper-V: Re-IP

When the IP addressing scheme for the replica differs from the IP addressing scheme for the Hyper-V source VMs, your failback job needs relations between source VMs addresses and the replica VMs addresses to be performed successfully. These relations are called Re-IP rules.

Warning
Hyper-V Integration Services must be running on source VMs to enable successful re-IP for your failback job.

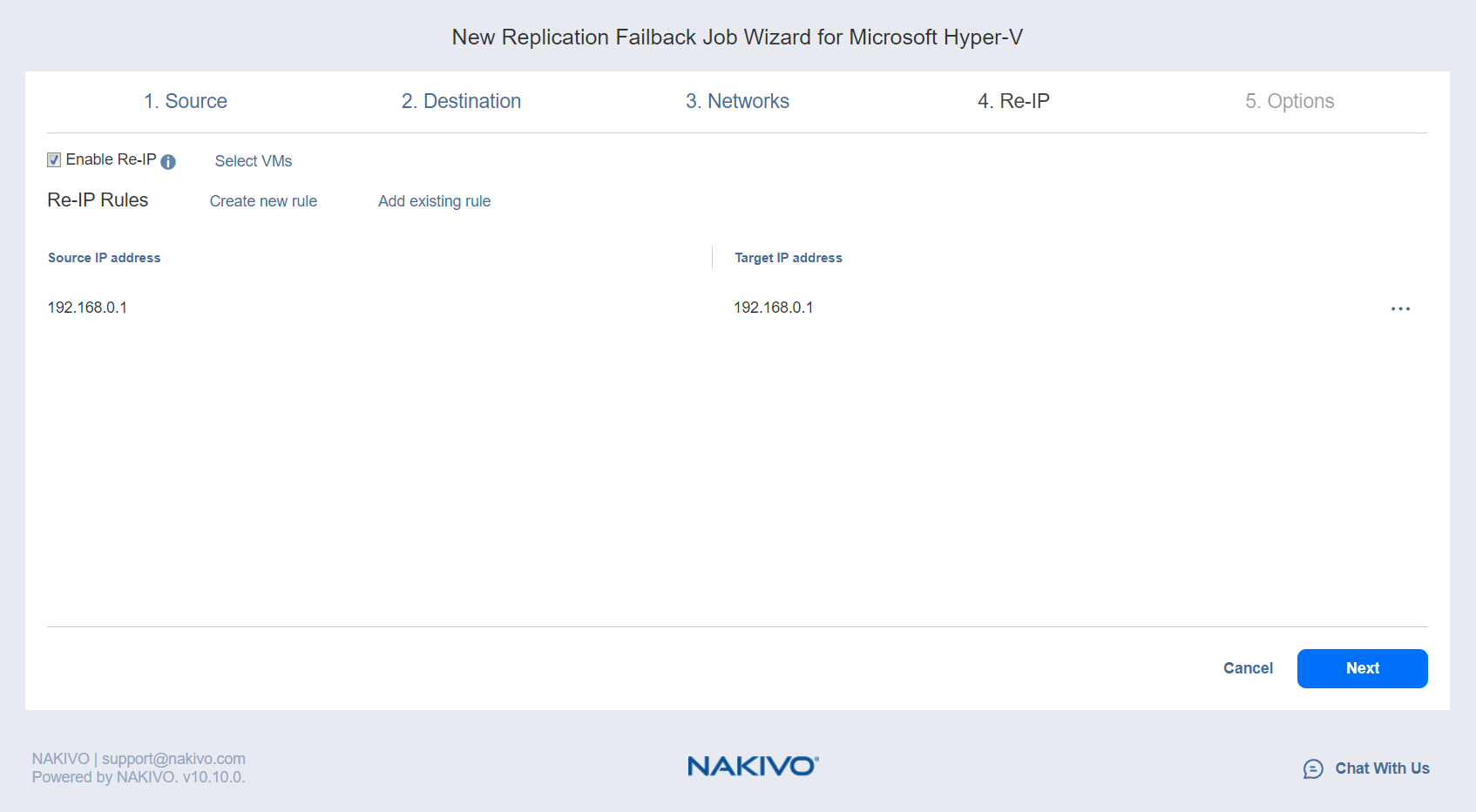

To map a source VM IP address to a specific target IP address, do the following on the Re-IP page of the wizard:

  1. Select Enable Re-IP.

  2. The Re-IP Rules section opens. Click the Select VMs link.

  3. The Re-IP dialog opens. In the list of your source VMs, select at least one and close the dialog.

  4. You have the following options:

    • Create a new rule:

      1. Click Create new rule.

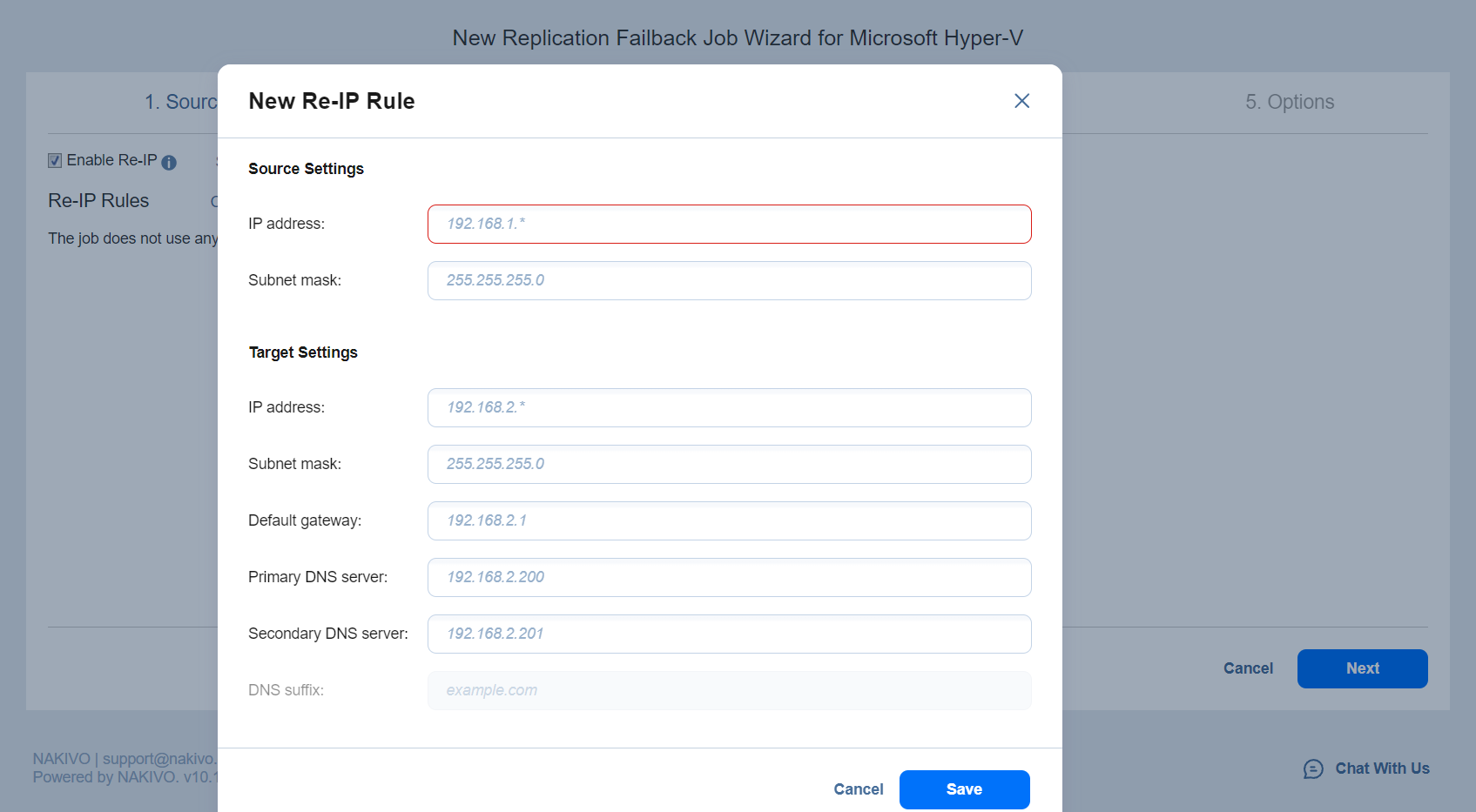

      2. The New Re-IP Rule dialog opens. Enter source and target settings for the Re-IP rule and click Save.

        Note
        You can use wildcards for IP addresses.

        Example

        When the 192.168.1.* -> 10.30.30.* Re-IP rule, a source VM IP address such as 192.168.1.50 will be changed to the 10.30.30.50 IP address for your replica failback job.
        When there are several Re-IP rules applicable to your source VM, the application will define the most suitable one and apply it to the source VM IP address.

    • Add an existing rule:

      1. Click Add existing rule.

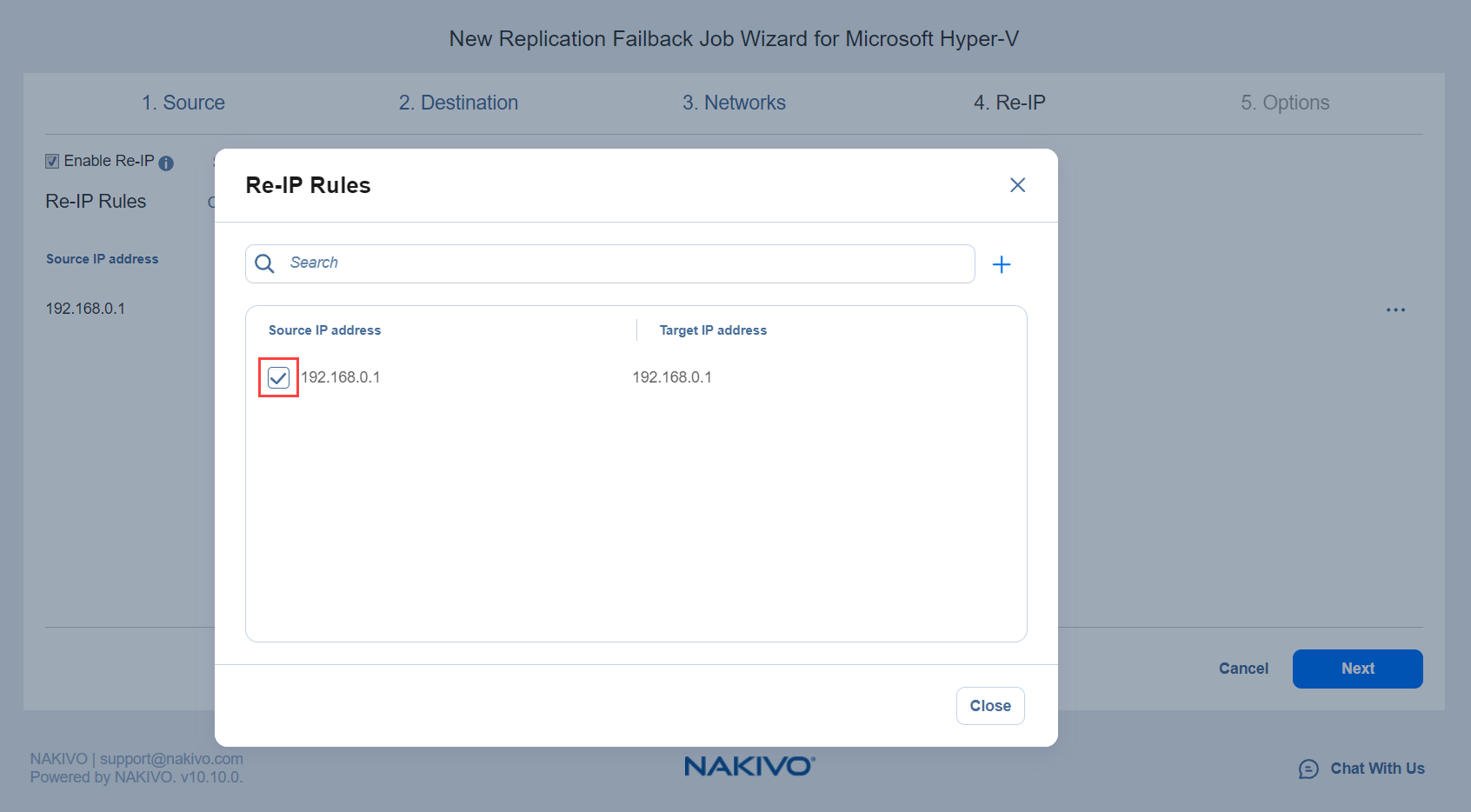

      2. The Re-IP Rules dialog opens. Choose an appropriate Re-IP rule and close the dialog box.

    • Edit an existing Re-IP rule:

      1. Hover over the required item in the Re-IP Rules list.

      2. A toolbar with icons opens to the right of the item. Click the Edit icon.

      3. The Edit Re-IP Rule dialog box opens. Edit the required properties of the Re-IP rule and click Save.

    • Delete an existing mapping:

      1. Hover the pointer over the necessary item in the Re-IP Rules

      2. A toolbar with icons opens to the right of the item. Click the Delete icon.

    • To leave the list of existing Re-IP rules intact, go to the next page of the wizard.

  5. Click Next to go to the next page of the wizard.
