Real-Time Replication (Beta) Job Wizard for VMware: Re-IP

Note
Re-IP rules will be applied only to VMs that have a static IPv4 address configured.

To enable Re-IP rules for your replication job, do the following on the Re-IP page of the wizard:

  1. Select Enable Re-IP.

  2. Click the Select VMs link.

  3. The Re-IP dialog box opens. In the list of your source VMs, select at least one, and close the dialog box.

  4. You have the following options:

    • Create a new rule:

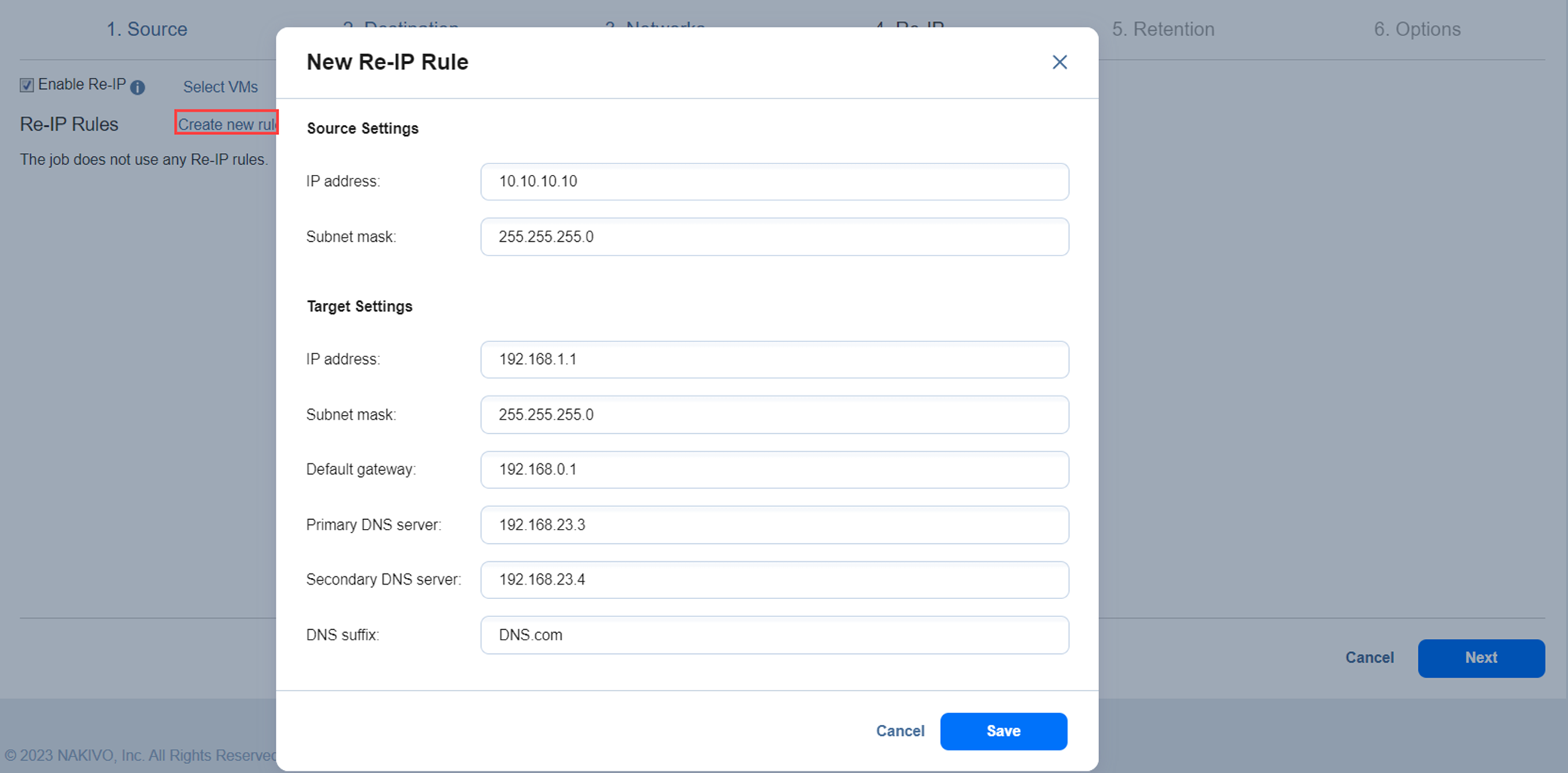

      1. Click Create new rule.

      2. The New Re-IP Rule dialog box opens. Enter source and target settings for the Re-IP rule and click Save.

      Note
      You can use wildcards for IP addresses. Refer to the Real-Time Replication Failover (Beta) Job Wizard for VMware: Re-IP topic for details.

    • Add an existing rule:

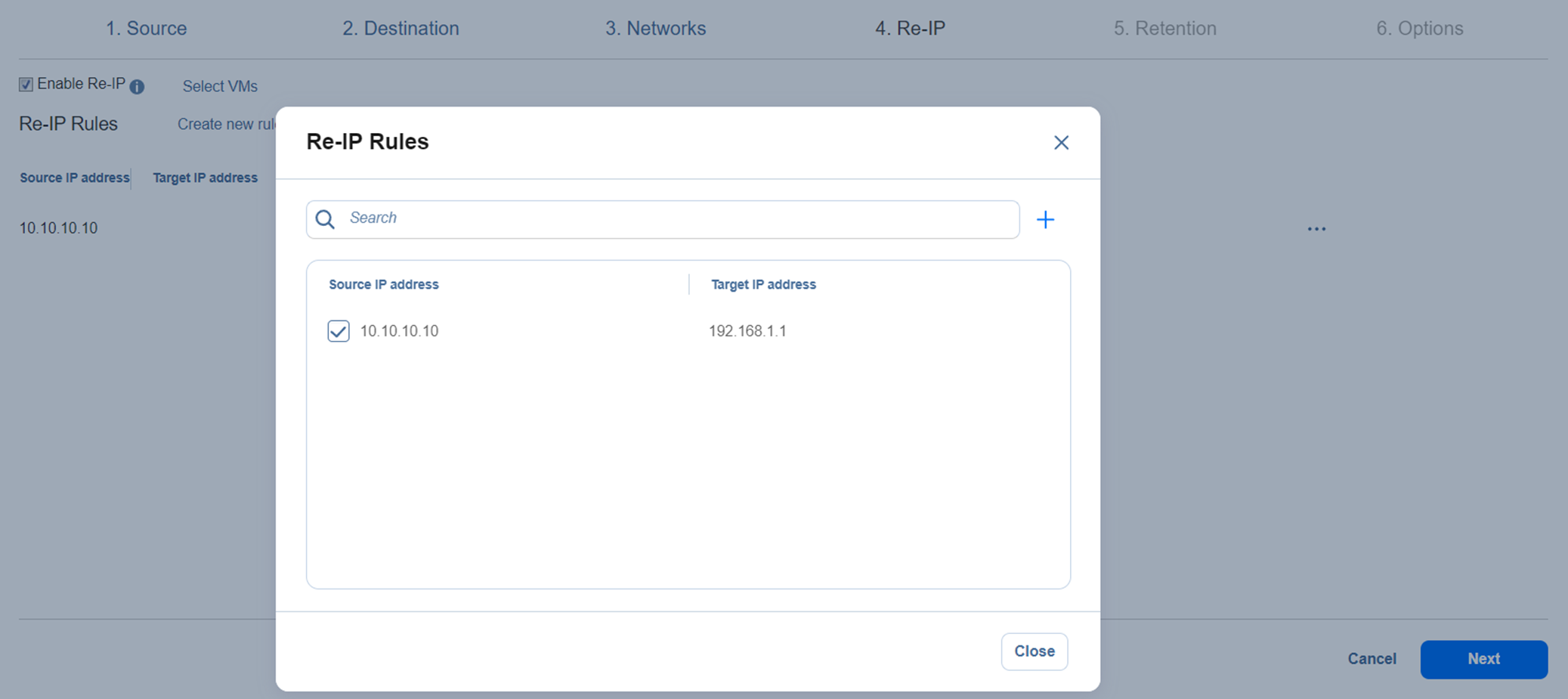

      1. Click Add existing rule.

      2. The Re-IP Rules dialog box opens. Select one or more appropriate Re-IP rules and close the dialog box.

    • Edit an existing Re-IP rule:

      1. Hover the pointer over the required item in the Re-IP Rules list and click the ellipsis Manage button to the right of the item. Then, click Edit.

      2. The Edit Re-IP Rule dialog box opens. Edit the required properties of the Re-IP rule and click Save.

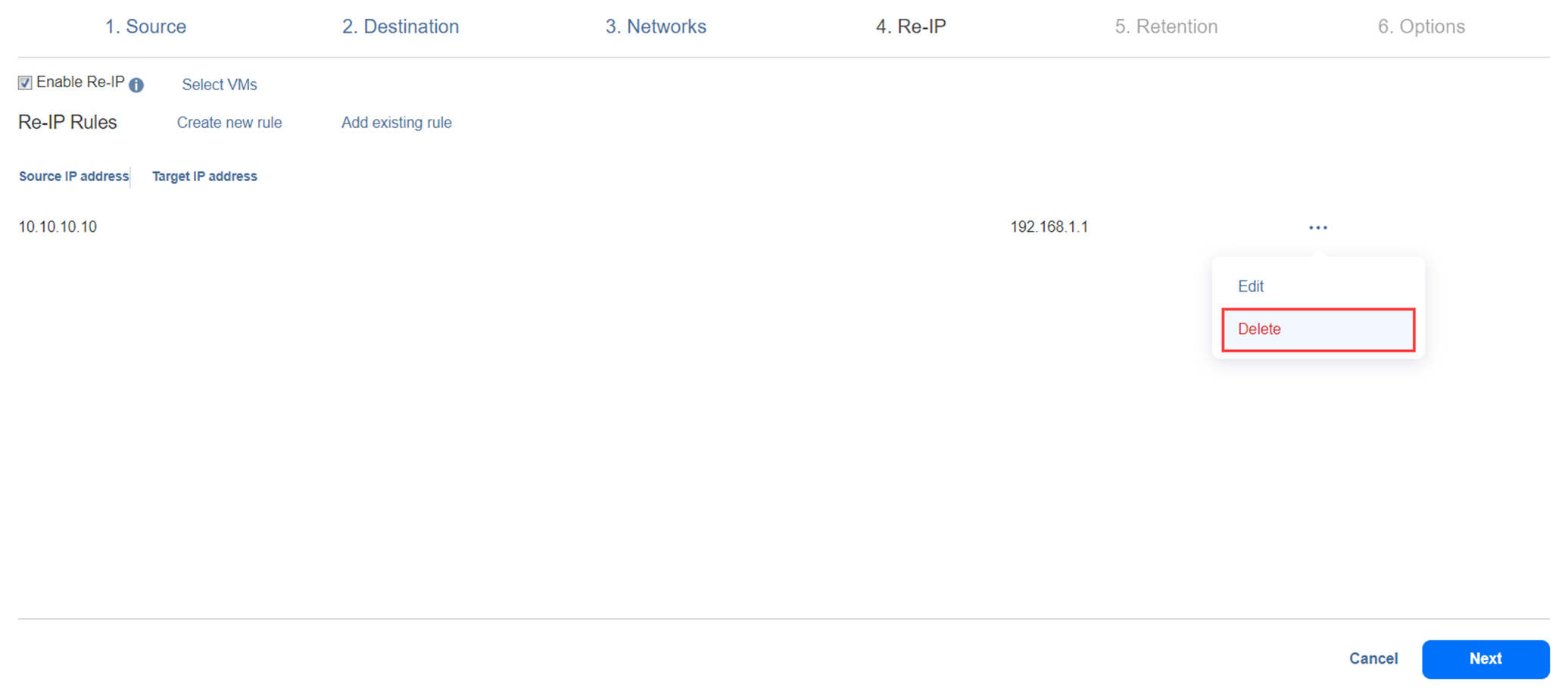

    • Delete an existing mapping: Hover the pointer over the required item in the Re-IP Rules list and click the Delete icon to the right of the item.

    • To leave the list of existing Re-IP rules intact, go to the next page of the wizard.

    • Click Next to go to the next page of the wizard.
