Replication Job Wizard for VMware: Networks

Note
The Networks page is skipped if you have chosen an existing backup as the source for your replication job on the Source wizard page.

To map source VM virtual networks to appropriate target virtual networks, do the following on the Networks page in the wizard:

1. Select Enable network mapping.

2. The Network Mappings section opens. You have the following options:

   • Create a new mapping:

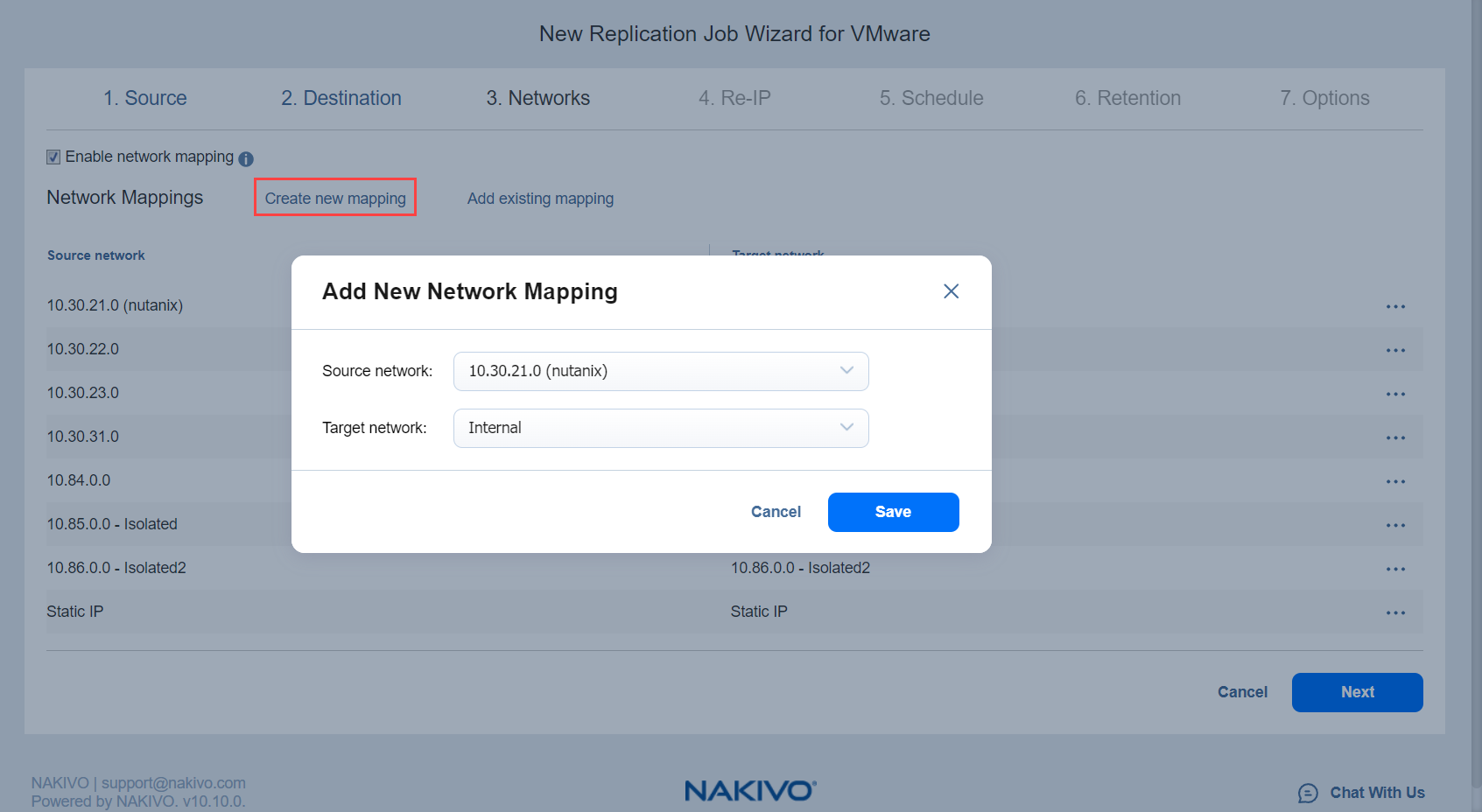

     1. Click Create new mapping.

     2. The New Network Mapping dialog box opens. Choose a source network and a target network and click Save.




   • Add an existing mapping:

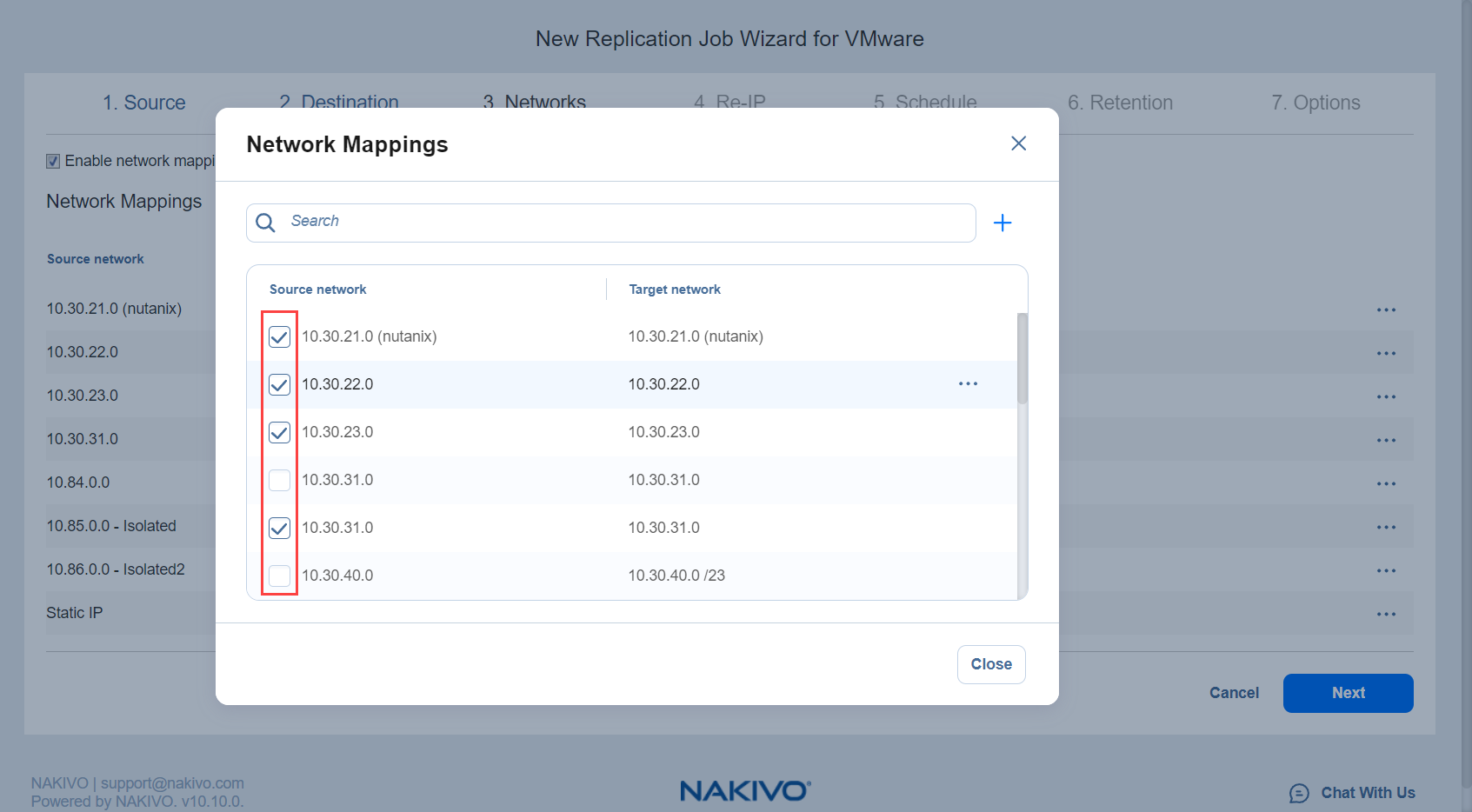

     1. Click Add existing mapping.

     2. The Network Mappings dialog box opens. Choose one or more appropriate network mappings and close the dialog box.




   • Edit an existing mapping:

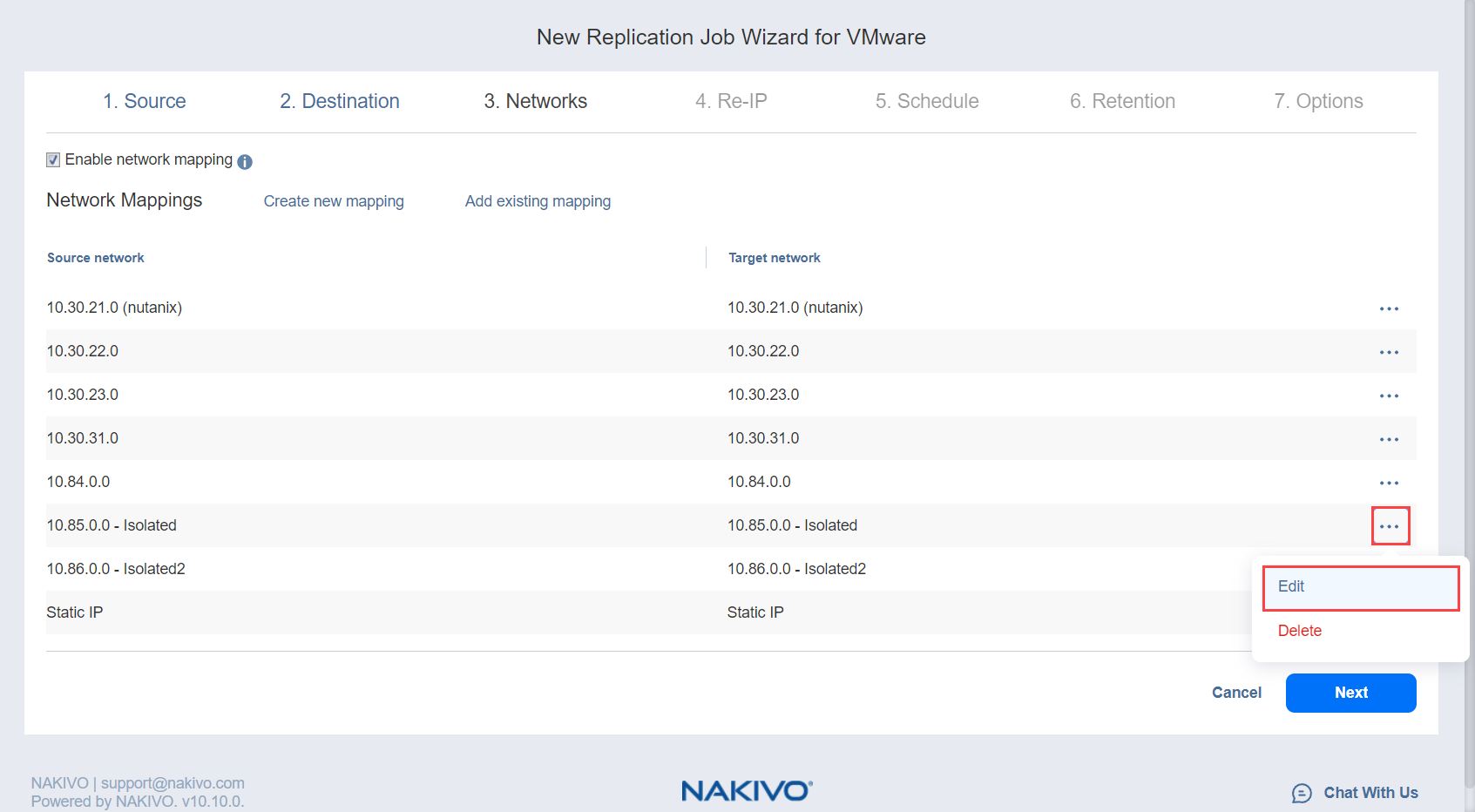

     1. Hover the pointer over the required item in the Network Mappings list and click the ellipsis Manage button to the right of the item. Then, click Edit.

     2. The Edit Network Mapping dialog box opens. Choose the required item from the Target network drop-down list and click Save.

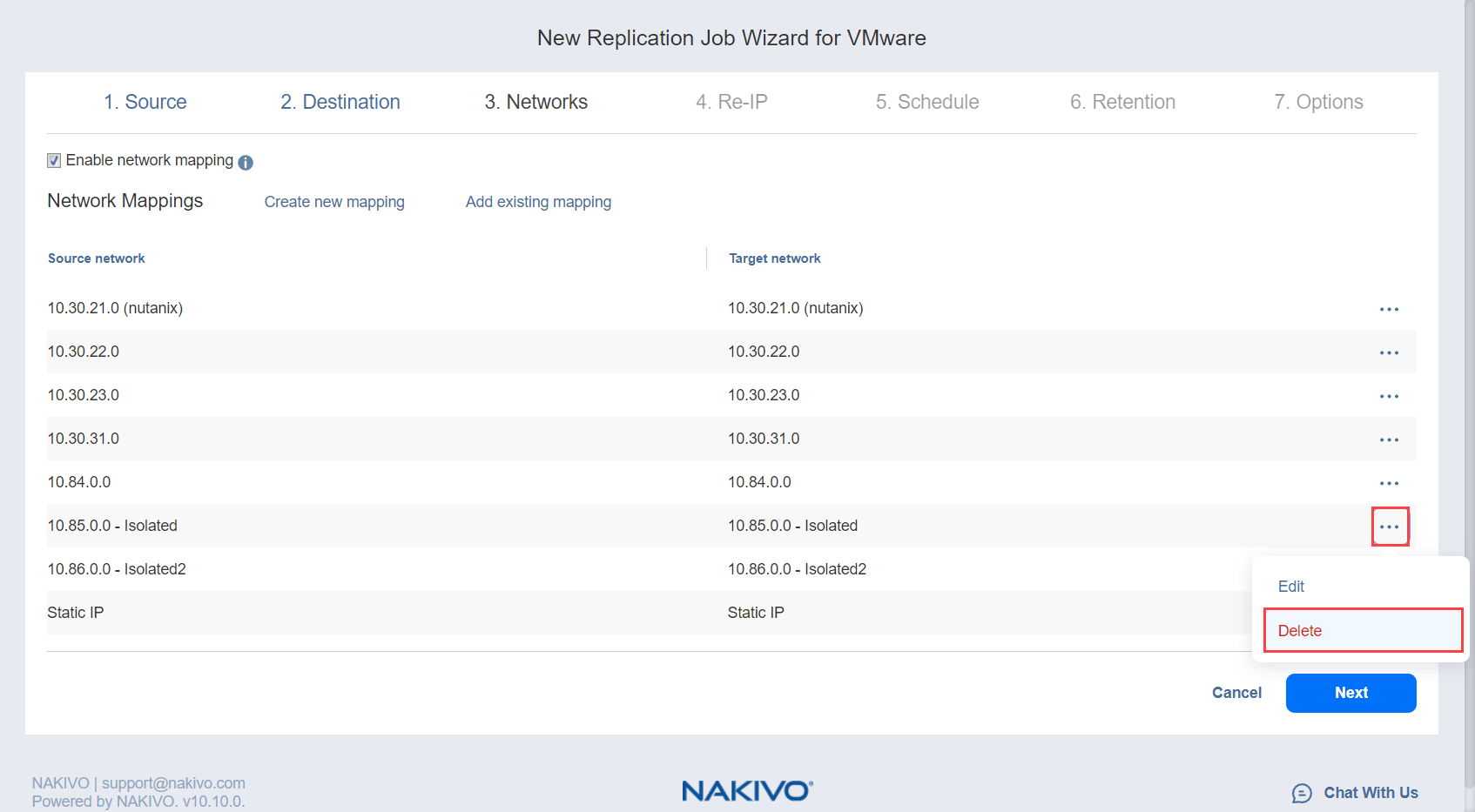

   • Delete an existing mapping: Hover the pointer over the required item in the Network Mappings list and click the ellipsis Manage button to the right of the item. Then, click Delete.




3. Click Next to go to the next page of the wizard.
