System Migration

NAKIVO Backup & Replication provides you with the ability to migrate all your settings (including inventory, jobs, credentials, transporter settings, and so on) to a new instance (copy) of the product.

Important
System configuration export and import are designed for migration purposes only, and not to serve as a system configuration backup. After you have exported system configuration from an old instance of the product, do not run jobs in that old instance. Doing so will result in failed jobs in the new instance after the migration. All jobs will have to be recreated, and full initial job run will be required.

See the topics below for more information:

Exporting System Configuration

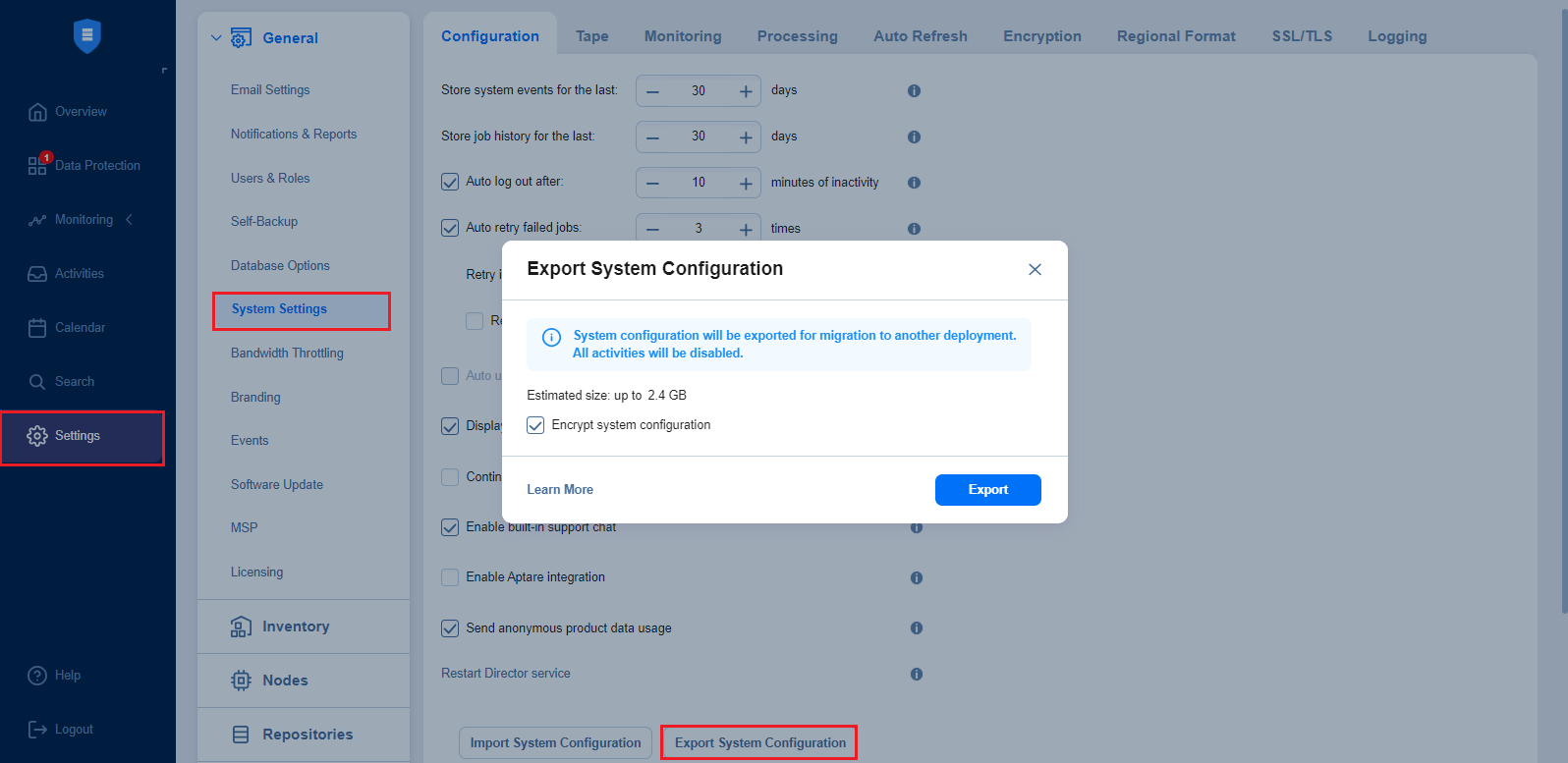

To export system configuration from the old deployment, follow the steps below:

  1. Click Settings in the left pane of the product.

  2. Select System Settings tab in the General section.

  3. On the Configuration tab, click Export System Configuration.

  4. In the dialog window that appears, click Export.


  5. Click Proceed to confirm the operation.

    Note
    All activities in the old instance (such as jobs and recovery sessions) will be automatically stopped and all jobs will be disabled.

  6. Wait until the export is completed and download the export bundle.

  7. Do not run jobs in the old instance.

Importing System Configuration

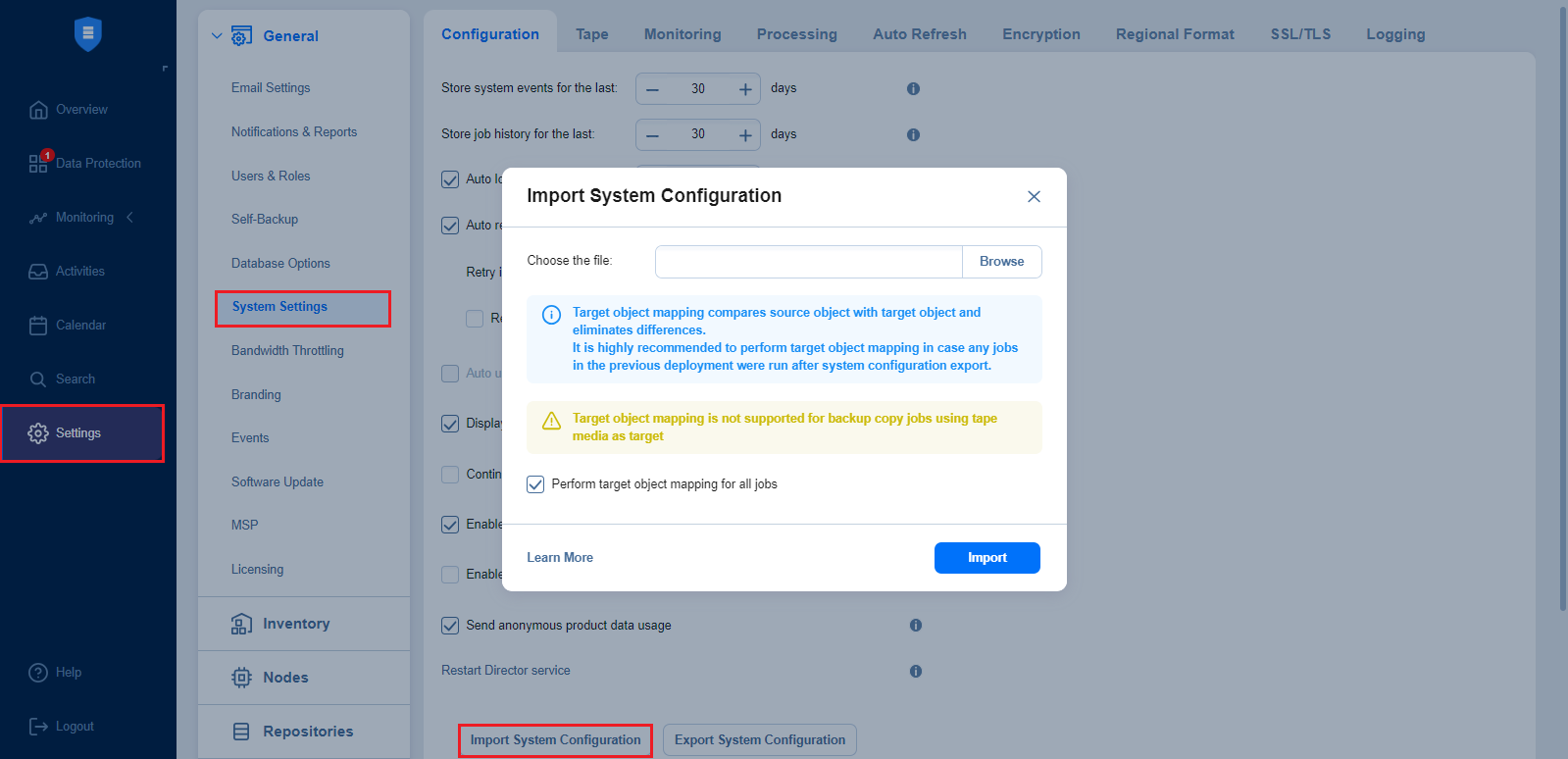

To import system configuration into a new instance of the product, follow the steps below:

  1. Click Settings in the left pane of the product.

  2. Select System Settings tab in the General section.

  3. On the Configuration tab, click Import System Configuration.

  4. In the dialog window that appears, locate the system configuration bundle using the Browse button.


  5. Click Import.

  6. Click Proceed to confirm the operation.

    Important

    • If there is any existing data in the new instance, it will be overwritten with the import operation.

    • Target object mapping is skipped for backup copy jobs using tape media as target.

    • If a physical configuration of your source deployment differs from a target deployment, a Backup Repository may become inaccessible after the bundle import is completed.

  7. Wait until the import is completed, and close the dialog window.

Notes

  • Backup Repositories are not migrated by the system configuration export and import. If you have a local Backup Repository on the old instance of the product, you may want to move it to the new location. After moving the Backup Repository, you may need to edit Backup Repository settings in the new instance so that the new settings refer to the actual Backup Repository location.

  • In case a custom TLS/SSL certificate of the Web server was used in the old instance, a manual service restart will be required in the new deployment.
