Adding HPE Alletra Storage Devices to Inventory

To add an HPE Alletra storage device to the NAKIVO Backup & Replication Inventory, follow the steps below:

1. Verify that the HPE Alletra device meets the integration requirements.

2. Click Settings in the main menu of NAKIVO Backup & Replication.

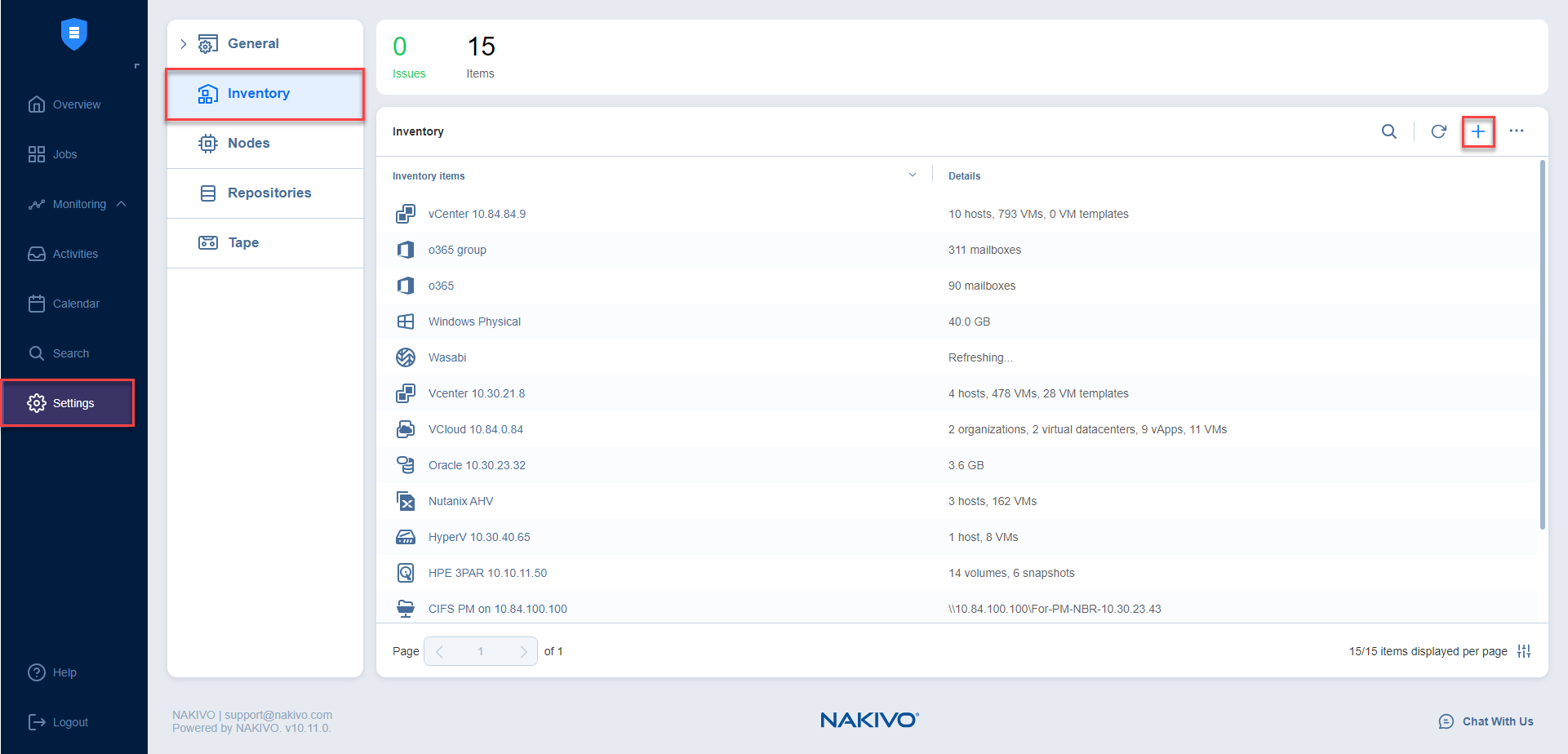

3. Go to the Inventory tab and click +.

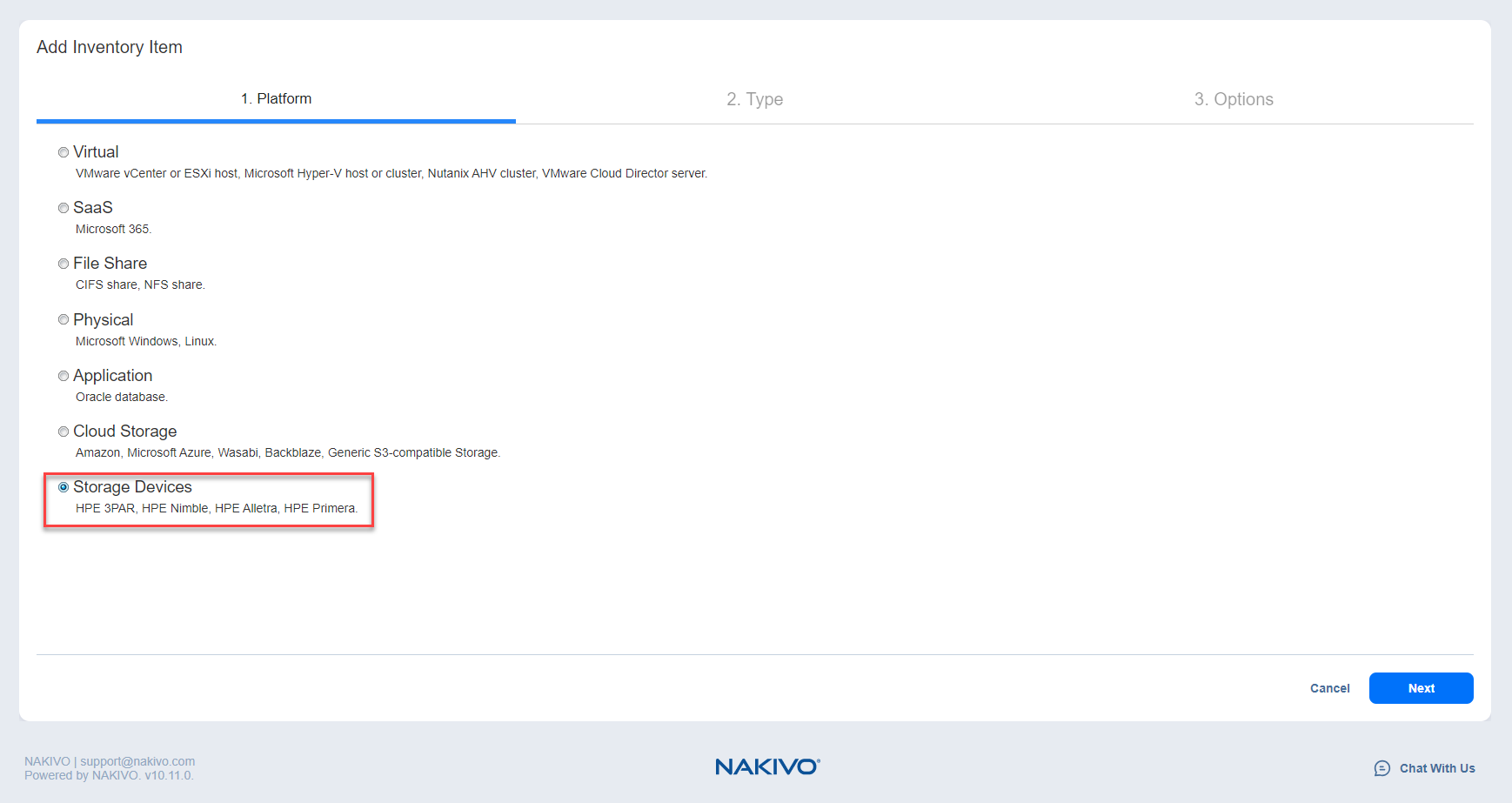

4. On the Platform page of the wizard, select Storage Devices and click Next to proceed.



5. On the Type page of the wizard, keep Hewlett Packard Enterprise (HPE) selected and click Next.

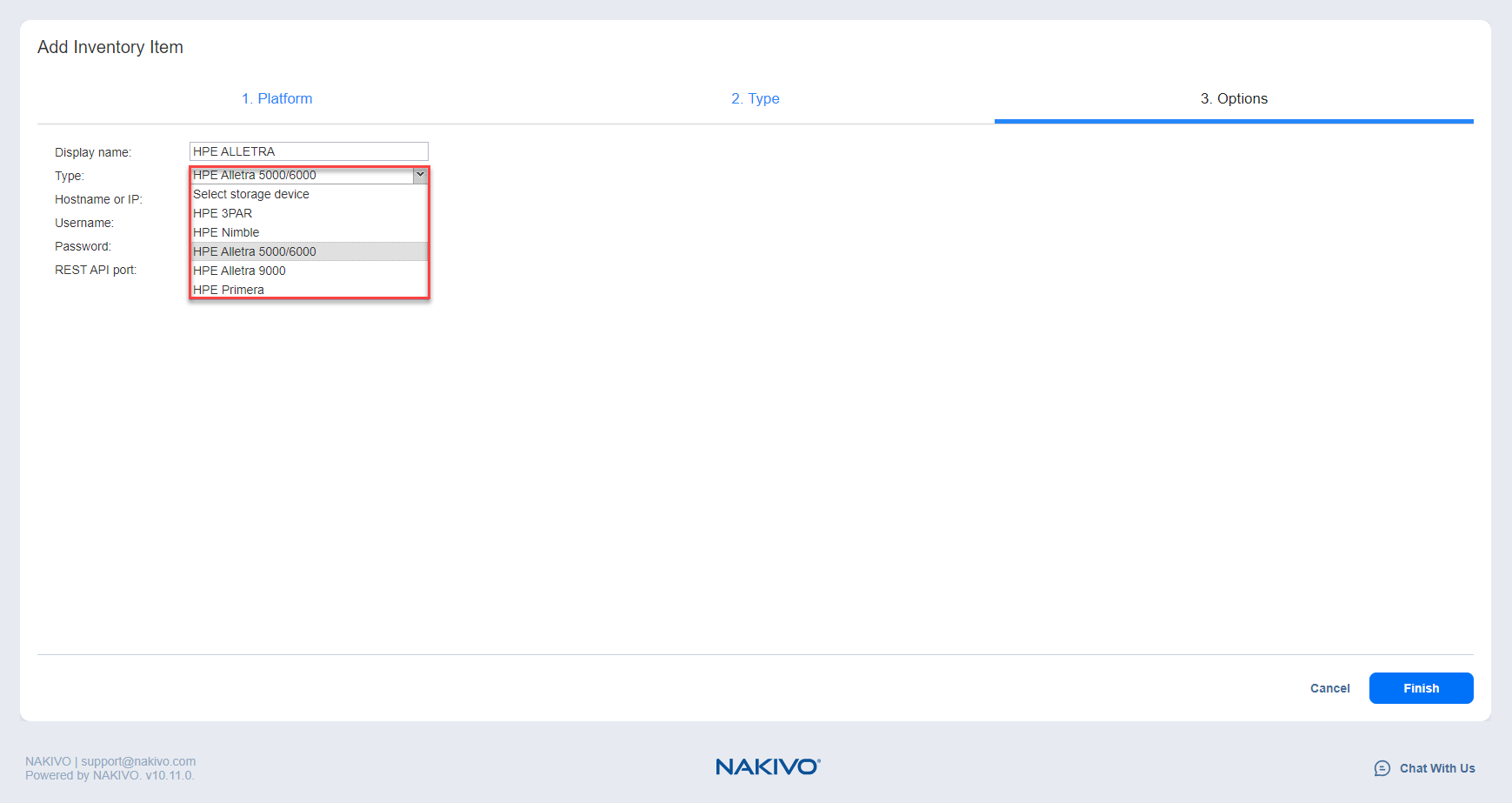

6. On the Options page of the wizard, provide the following information:

   • Display name: Specify a name for the HPE Alletra storage device. This name will be displayed in the Inventory.

   • Type: Select the storage device type from the dropdown list: HPE Alletra 5000/6000 or HPE Alletra 9000.

   • Hostname or IP: Specify the hostname or the IP address of HPE Alletra device that you want to add to the Inventory.

   • Username: Provide a username for the HPE Alletra storage device.

   • Password: Provide a password to the HPE Alletra storage device.

   • REST API port: For the HPE Alletra 5000/6000 storage device type, specify the REST API port.

   • Web services port: For the HPE Alletra 9000 storage device type, specify the web services port. By default, 443 is selected.



7. Click Finish when you are done.
