Managing Backups

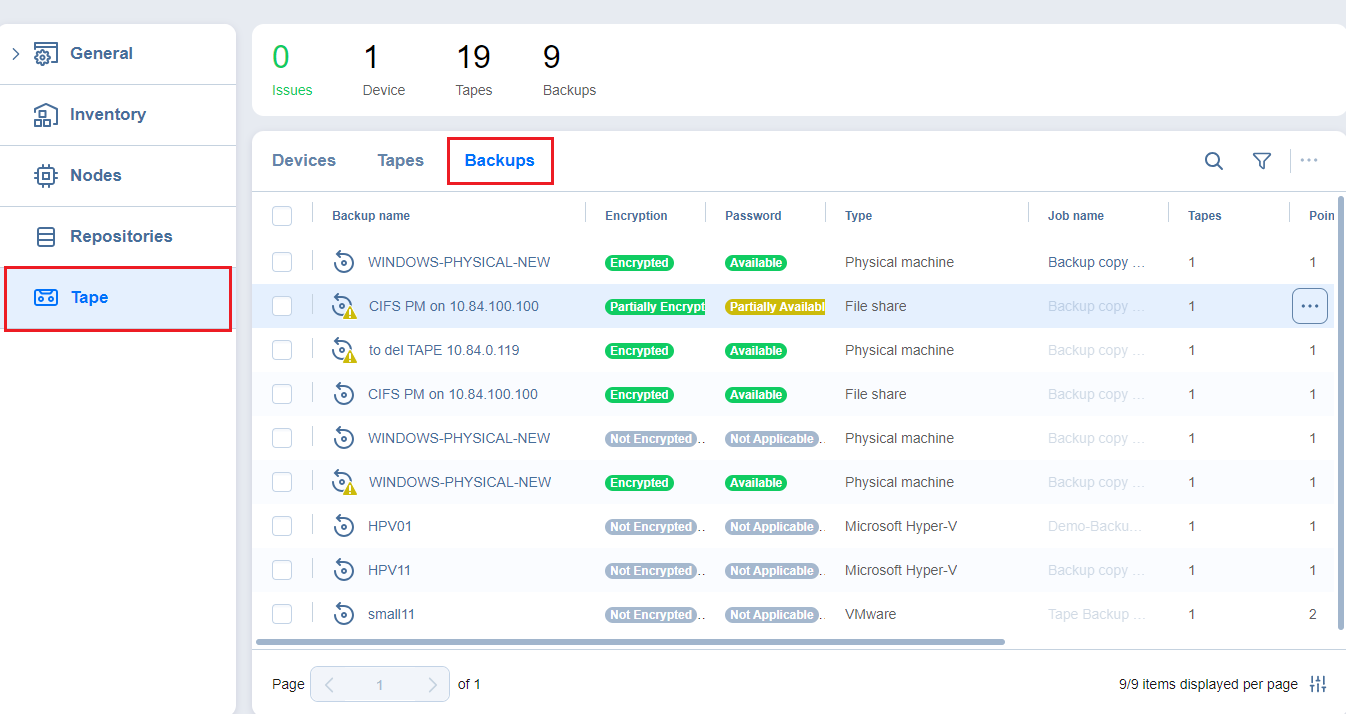

From the Tape tab, you can also manage all backups stored on tape cartridges by clicking the Backups tab.

In this view, you can search for backups, recover from backups, and view backup details.

• Searching for Backups

• Filtering Backups

• Backups Table

• Recovering from Backups

Searching for Backups

You can search for a specific backup by entering its name (or part of its name) into the Search box. The table will dynamically change to display the search results matching your query.

Clicking the Clear button in the search box clears the query, and the table displays all backups.

Filtering Backups

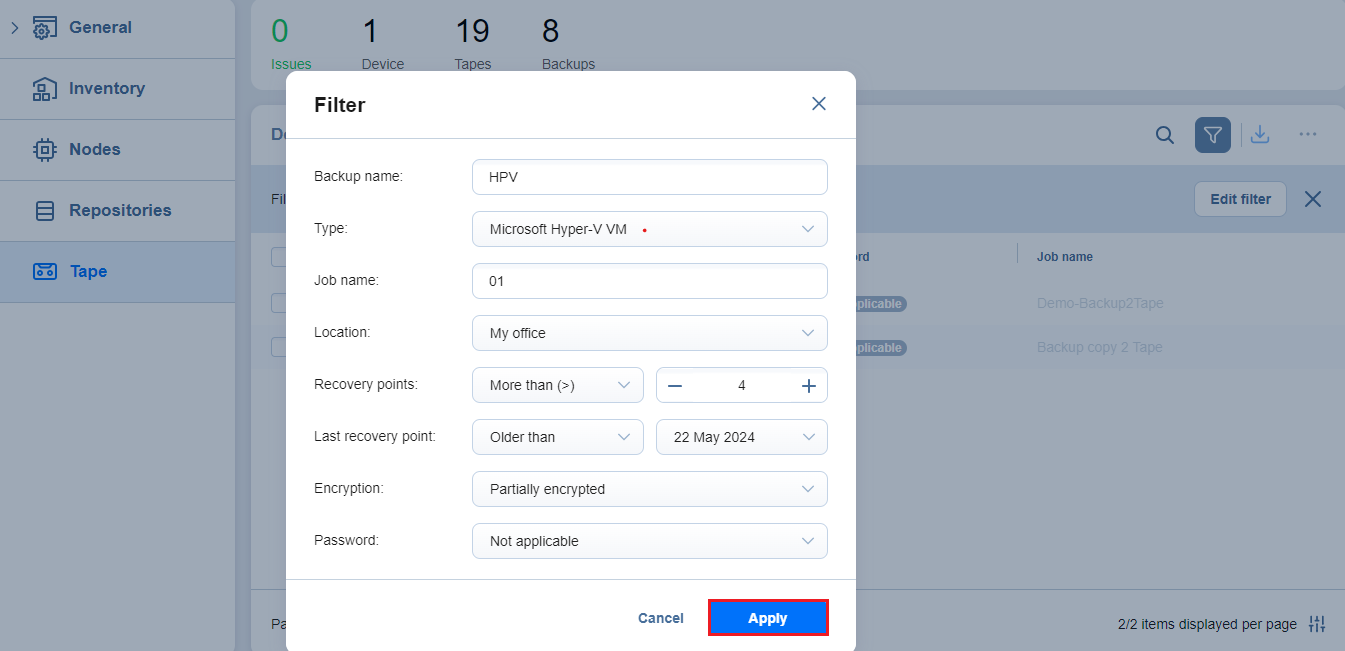

The Backups tab also provides sophisticated filtering options that can be applied to search for particular backups. To access filtering options, click the Filter icon in the top right corner. In the dialog box that opens, you can select one or several filtering criteria that will be applied with the AND statement.

You can apply the following filtering criteria:

• Backup name: The backups with the provided name will be displayed. Part of the name can be entered.

• Type: Specify the type of backups to be displayed:

  • Any

  • VMware VM

  • Hyper-V VM

  • EC2 instance

  • Nutanix AHV VM

  • Physical machine

• Location: Only the backups from the tape cartridges of the specified device location will be displayed

• Job name: Only the jobs with the specified string in their name will be displayed

• Recovery points: Only the backups with less or more recovery points will be displayed

• Last recovery point: Only the backups with the last recovery point created on/newer/later than the date specified will be displayed

Note
The Search and Filter features can only be applied separately; you cannot simultaneously search for a tape cartridge by name and select filtering options.

Backups Table

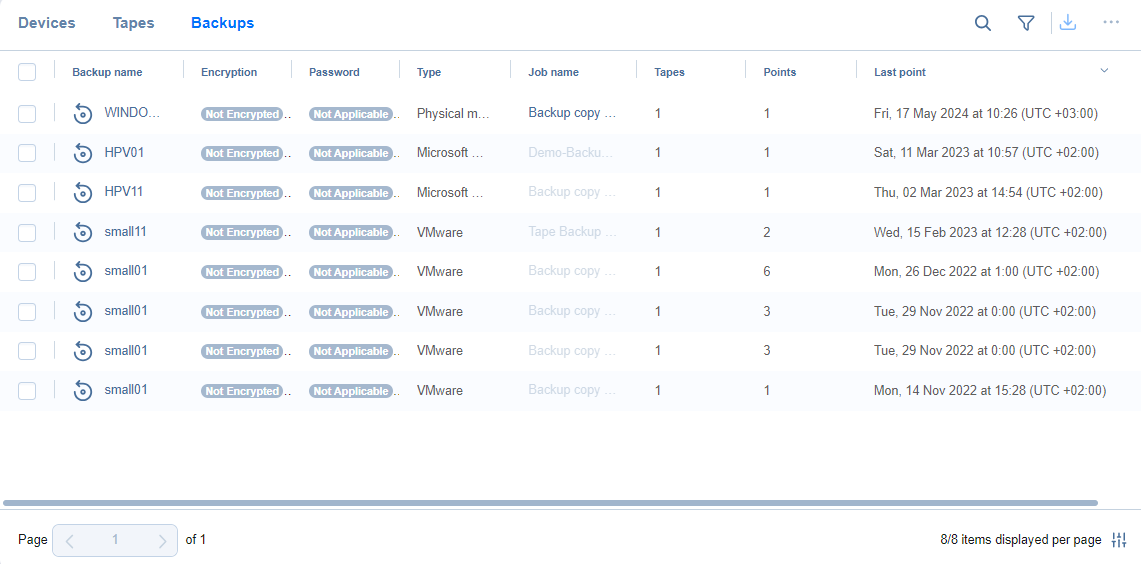

The Backups table provides detailed information about each backup:

• Backup name: Displays the name of the backup. Clicking the name opens the Recovery screen.

• Type: Displays the type of backup

• Job name: Displays the name of the job associated with the backup

• Tapes: Displays the number of tape cartridges that the backup occupies

• Points: Displays the number of recovery points the backup has

• Last point: Displays the date of the last recovery point on the backup

Recovering from Backups

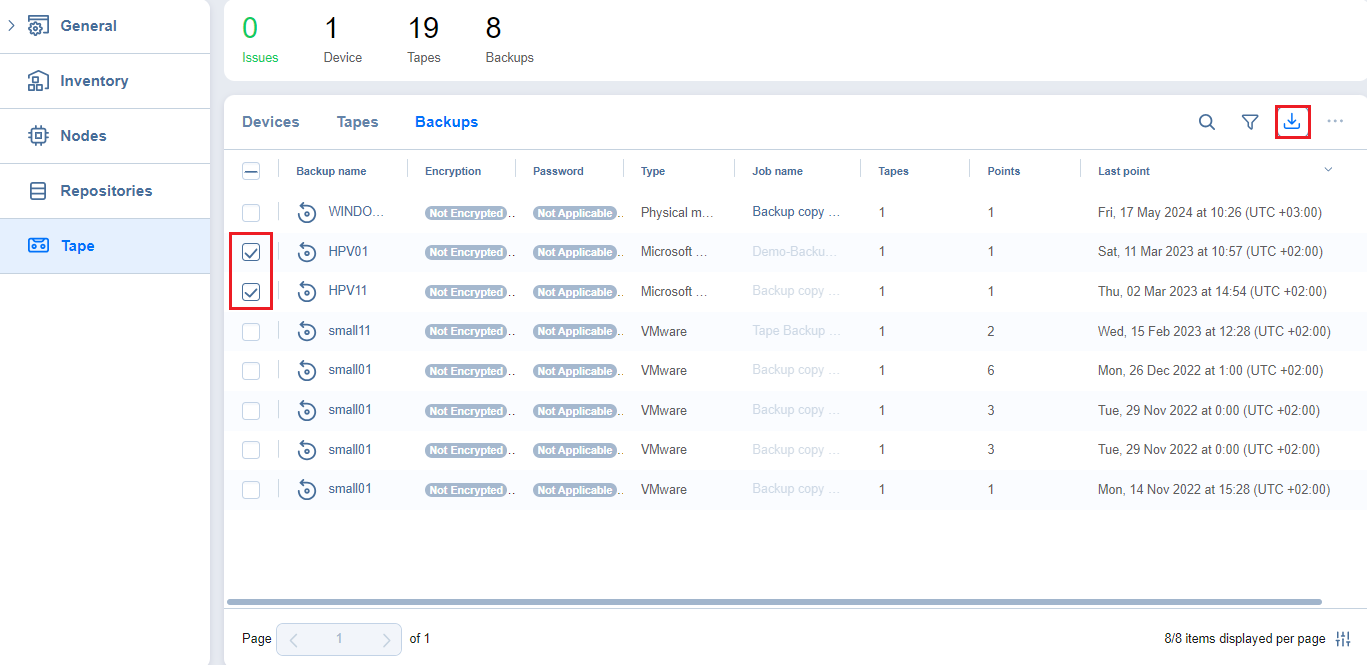

You can initiate the recovery process from the Backups tab by selecting the checkboxes next to backup names and clicking the Recover button.

Note
If you are recovering from multiple backups, you may only select backups of the same Type. If you select multiple backup types, the Recover button will be disabled.

The New Recovery Job Wizard opens with the specified backups and their latest recovery points selected.
