Replication Job Wizard for VMware: Re-IP

Note
The Re-IP page is skipped if you have chosen an existing backup as the target for your replication job on the Source wizard page.

To enable Re-IP rules for your replication job, do the following on the Re-IP page of the wizard:

1. Select Enable Re-IP.

2. Click the Select VMs link.

3. The Re-IP dialog box opens. In the list of your source VMs, select at least one, and close the dialog box.

4. You have the following options:

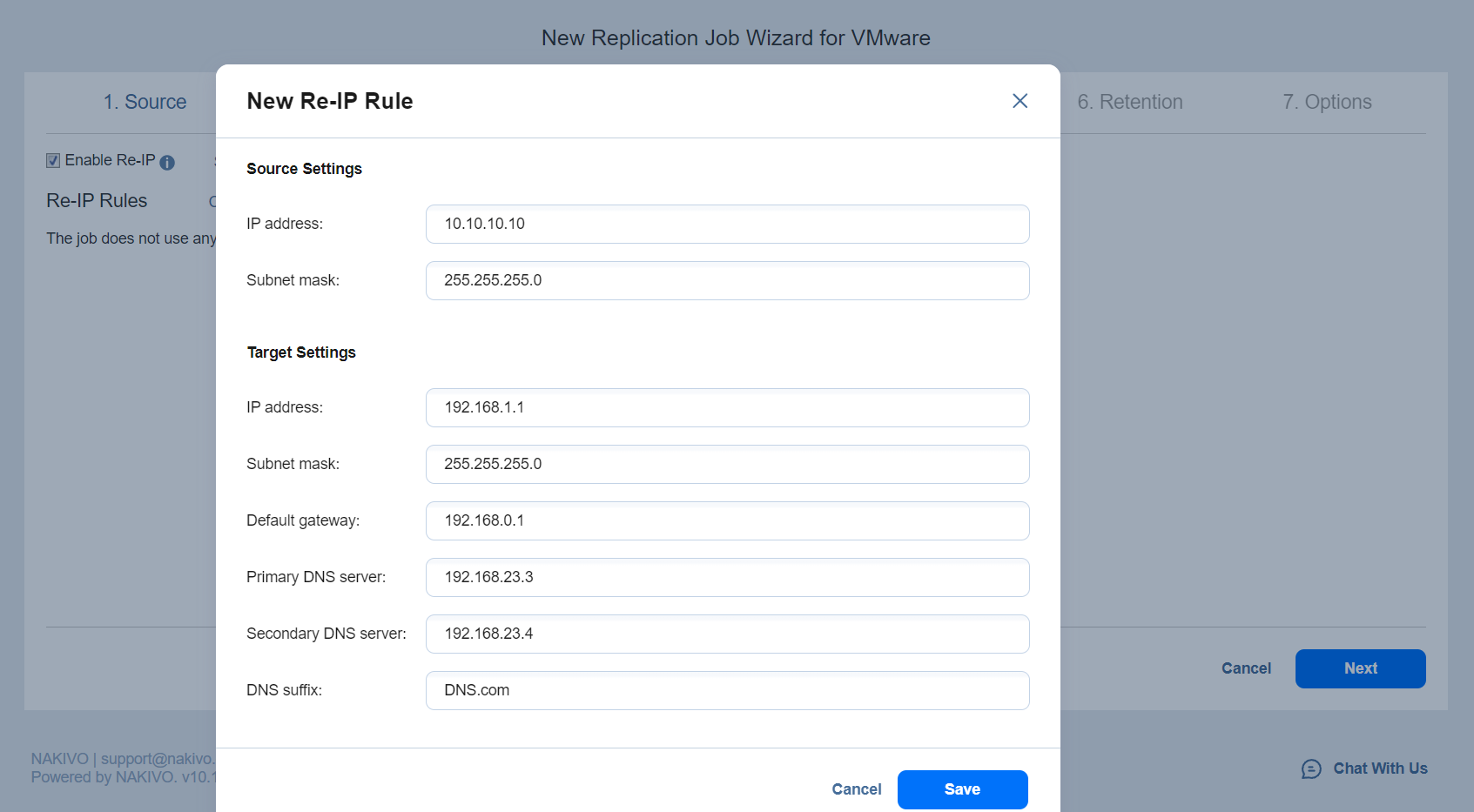

   • Create a new rule:

     1. Click Create new rule.

     2. The New Re-IP Rule dialog box opens. Enter source and target settings for the Re-IP rule and click Save.



     Note
     You can use wildcards for IP addresses. Refer to the Failover Job Wizard for VMware: Re-IP topic for details.

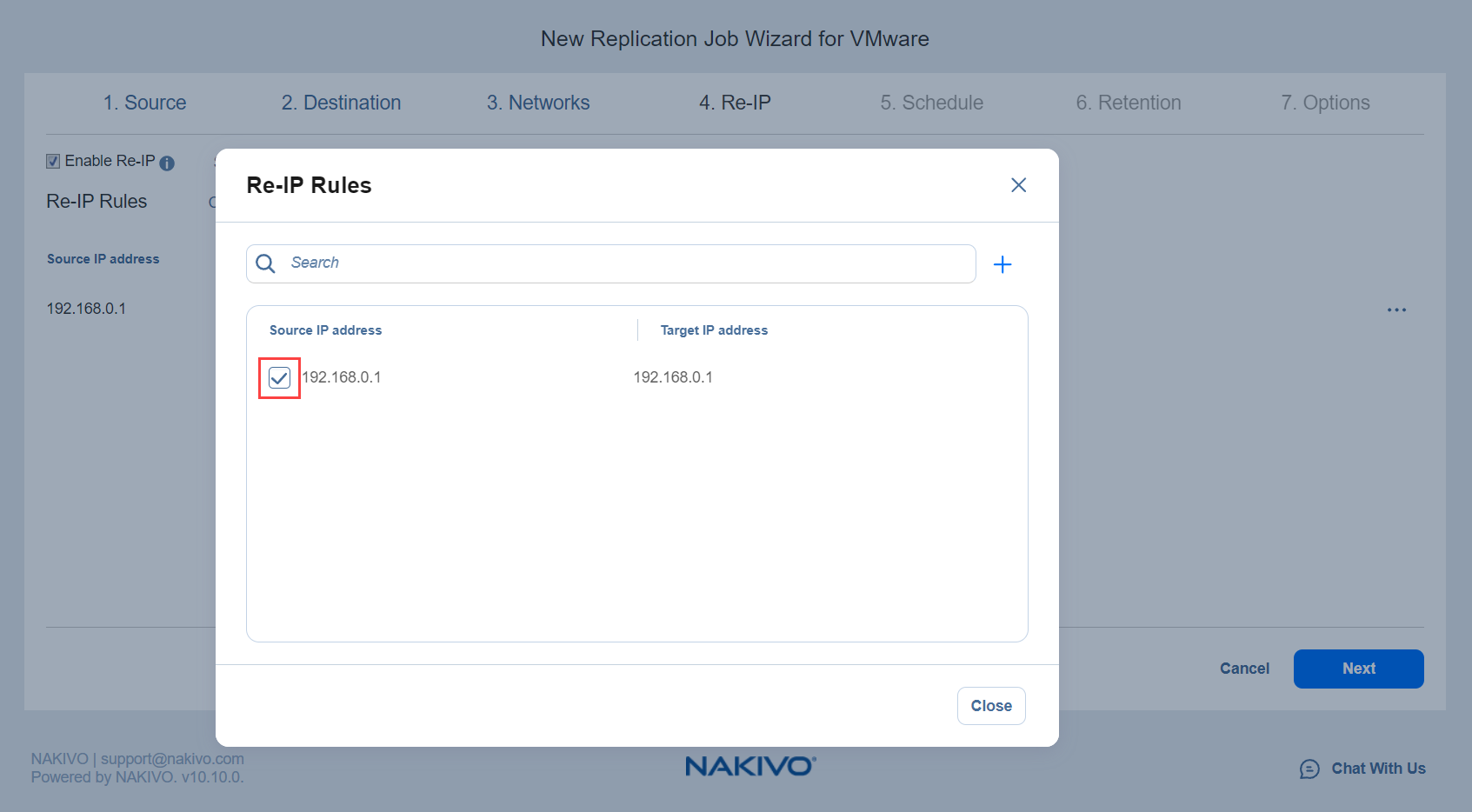

   • Add an existing rule:

     1. Click Add existing rule.

     2. The Re-IP Rules dialog box opens. Select one or more appropriate Re-IP rules and close the dialog box.




   • Edit an existing Re-IP rule:

     1. Hover the pointer over the required item in the Re-IP Rules list and click the ellipsis Manage button to the right of the item. Then, click Edit.

     2. The Edit Re-IP Rule dialog box opens. Edit the required properties of the Re-IP rule and click Save.

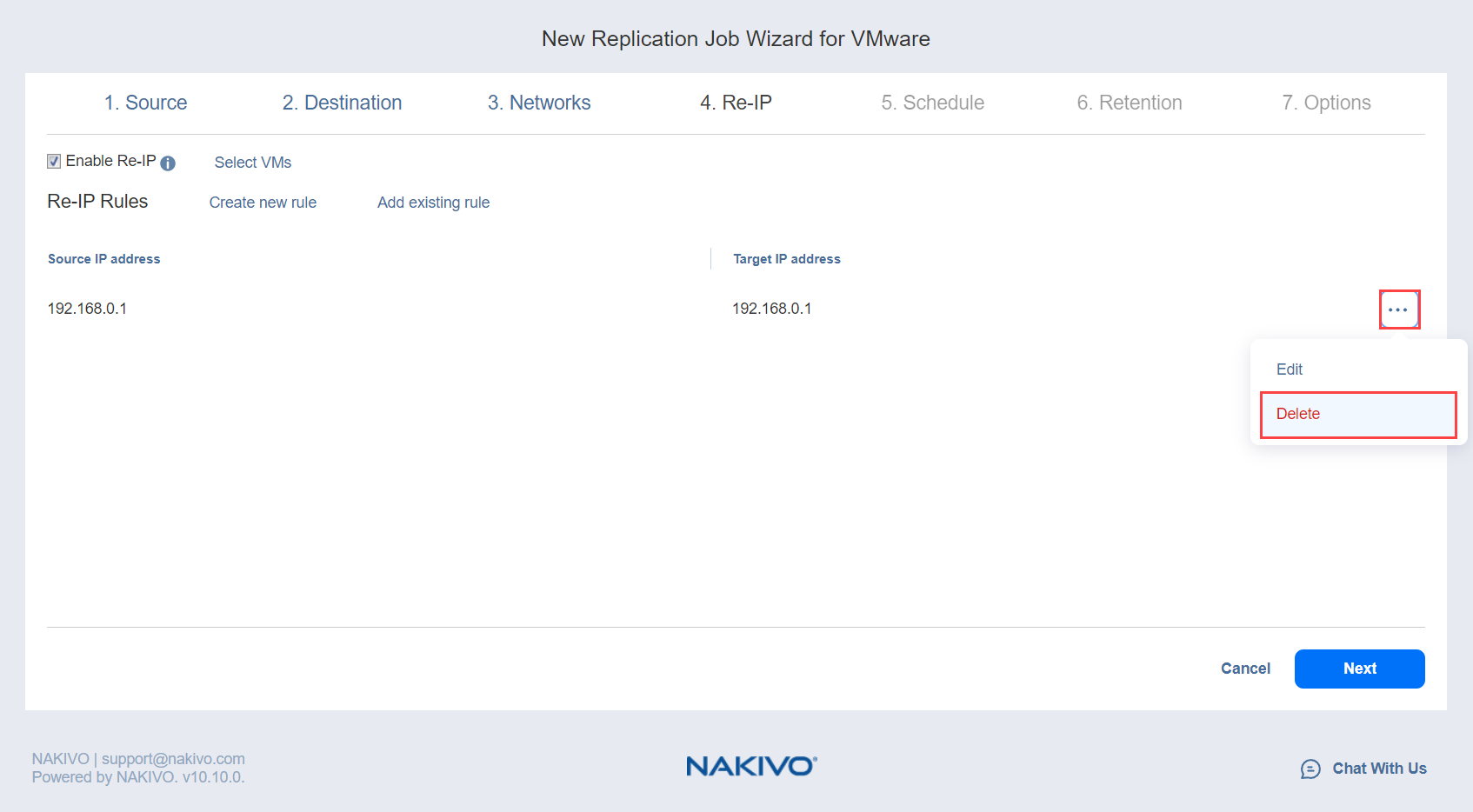

   • Delete an existing mapping: Hover the pointer over the required item in the Re-IP Rules list and click the Delete icon to the right of the item.




   • To leave the list of existing Re-IP rules intact, go to the next page of the wizard.

5. Click Next to go to the next page of the wizard.


   Notes

   • Re-IP Rules enabled for replication jobs are only stubs for failover jobs. They do not work at the replication stage.

   • Re-IP rules that are enabled for your replication job can be used for creating the corresponding failover jobs. Refer to Failover Job Wizard for VMware: Re-IP for details.
